    FS DIY LED Fixture

    Post by dwolson2 on Wed Feb 20, 2013 2:59 pm

    51 DIY Led array with drivers. 400$
    4Red, 4 green, 7actinic, 14Royal Blue, 8 Blue and 14 white. Cree LEDs
    Drivers are broken up: red w/3 RB, green w/3rb, 16 Blue/RB, 14 white, and 7 actinic.
    All of the LEDs are on a 6X20" heatsink. The fixture was run for about 30 hours on 40% or less and maybe an hour at 100%(for showing people and pictures)
    Also has 2 fans that were selected for having the most airflow while still being quiet(searched for a few hours before buying them)
    There are currently no lenses on the fixture, but I have a bag full of them if the user wanted to add them.
    Used all meanwell drivers except the actinics which is a rapidled fixture
    I am selling because I now have a rimless tank and bought a radion for the tank. Going down a little bit in power(compared to this fixture, but it takes up a little bit less realestate.
    I would recommend this light for a 40 breeder w/sps or a 4' with LPS(like a 75 or 90)
    How they are laid out:

    In the canopy(with quick disconnect harnesses)

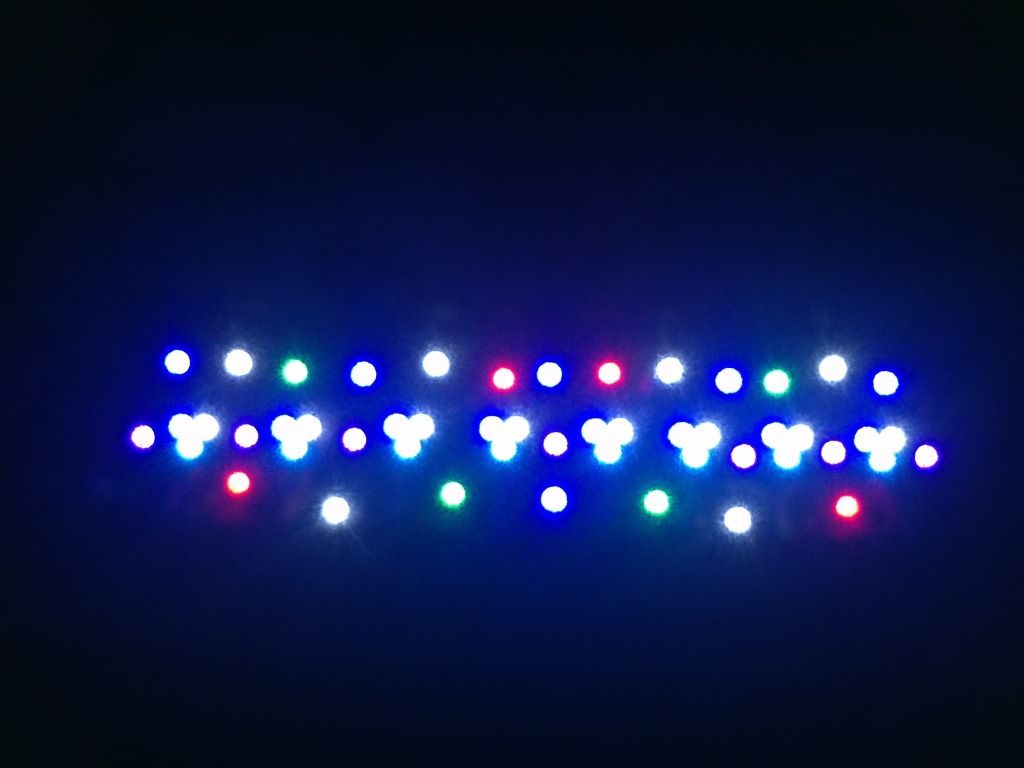

    All On:

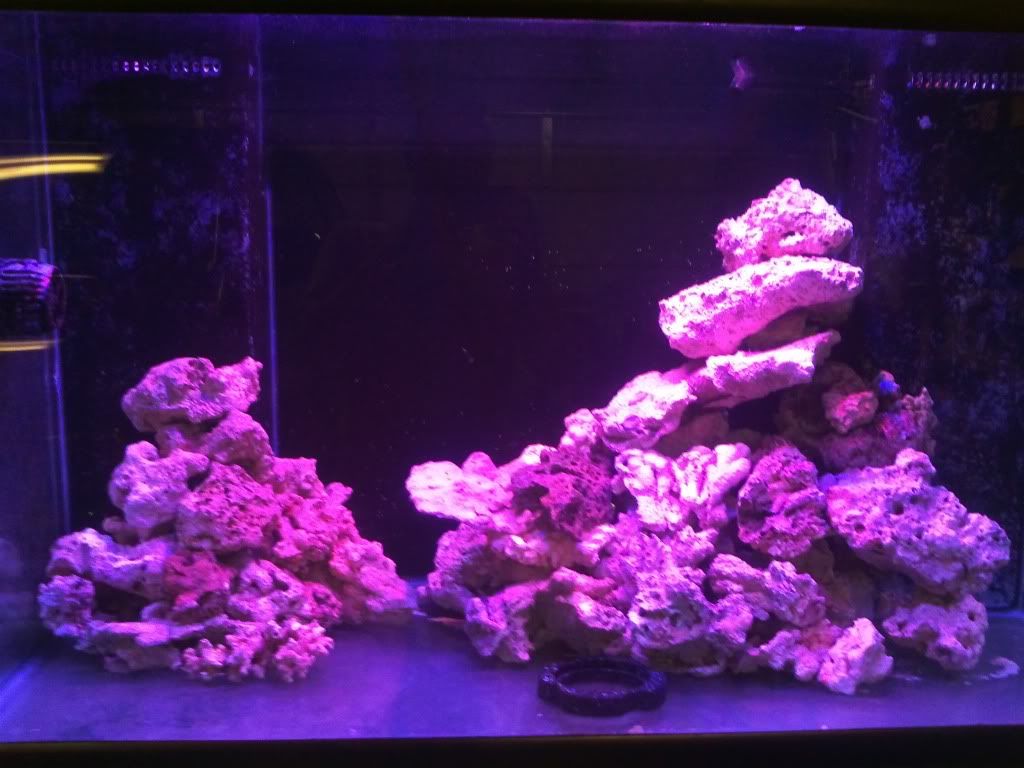

    Blue:

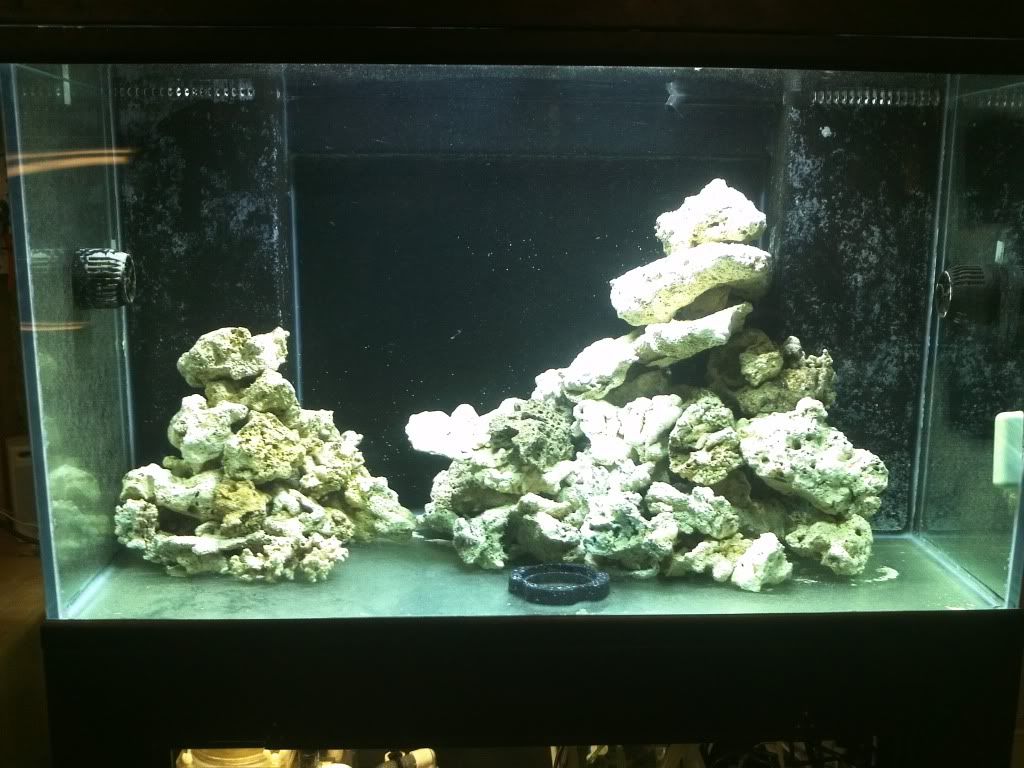

    White:

    Red:

    Green:


    Willing to have a partial trade, I am looking for an MP10WES and BM doser


    _________________
    2012 MASVC Treasurer, 2013 MASVC webmaster/secretary
    Wasting money on my tank one paycheck at a time!!
    50 Gal Cadlights(No thread, as its still a bit away from finishing it)
    avatar
    dwolson2
    Admin

    Posts : 2356
    Join date : 2011-08-07
    Location : Where ever I am told to go

    Re: FS DIY LED Fixture

    Post by dwolson2 on Thu Feb 21, 2013 10:33 am

    4 Red XP-E
    4 Green XP-E
    7 actinic •410-420nm
    14 Royal Blue XP-E
    8 Blue XP-E
    14 cool white XP-G
    (1) LPF-60D-54 Dimmable Driver (for the blue LEDs)
    (2) Mean Well ELN-60-27D Dimmable Driver (for the Red/Green LEDs)
    (1) Mean Well ELN-60-48D Dimmable Driver (for the White LEDs)
    (1) Rapid Led Dimmable Nano Driver (for the Actinic(UV) LEDs)
