    Aqua Style Led Kit for Biocube 14

    Share
    reefer87

    reefer87
    Charter Member

    Posts: 674
    Join date: 2011-09-10
    Age: 26
    Location: Point Mugu
    • Post n°1

    Aqua Style Led Kit for Biocube 14

    Post by reefer87 on Sat 03 Mar 2012, 1:56 pm

    Ok guys here we go. I was orginally looking in to the rapid led kit for the biocube 14 and expecting to spend around $200 dollars +shipping for the kit. After a few more weeks of surfing the internet I found on aquastyleonline.com, and found they had a really similar kit for a 1/4 of the price. List price is $50 after shipping it was $89. cheers

    Included in Kit: 5 blue leds, 5 10k leds, 2 uv leds, plenty of wire, driver, wall plug, heat sink, thermal adhesive and 2 spare leds.



    Marked the mounting post with white and red spots.

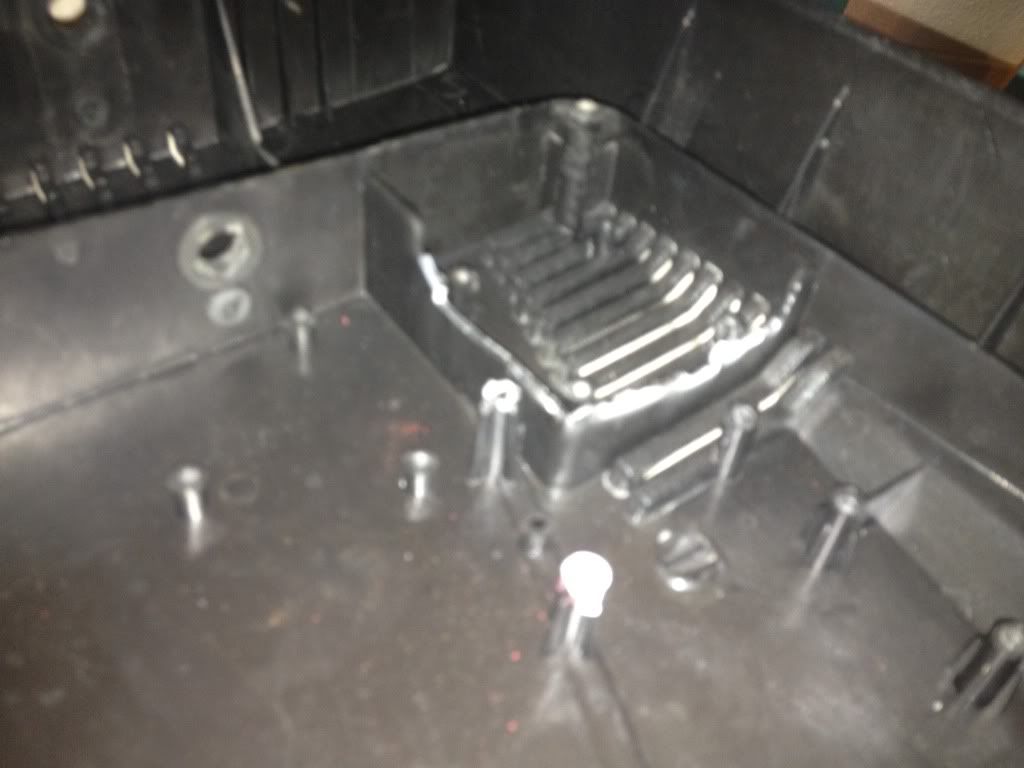

    Had to trim the fan shroud to fit the heat sink.

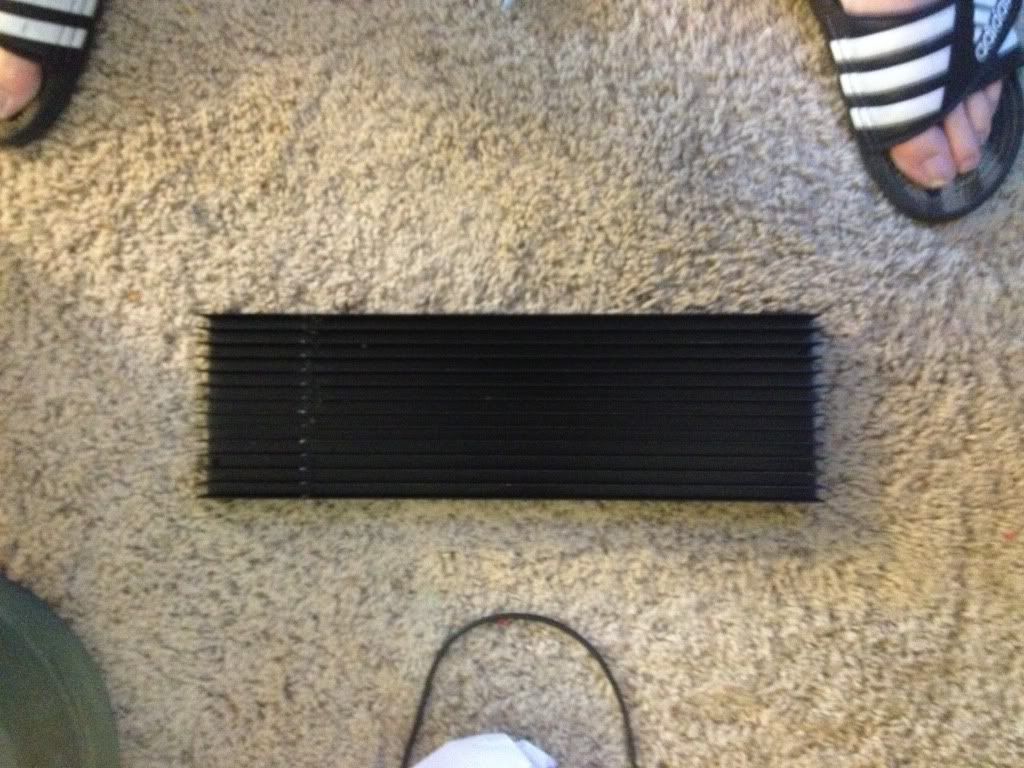

    marked and cut the heat sink to fit.

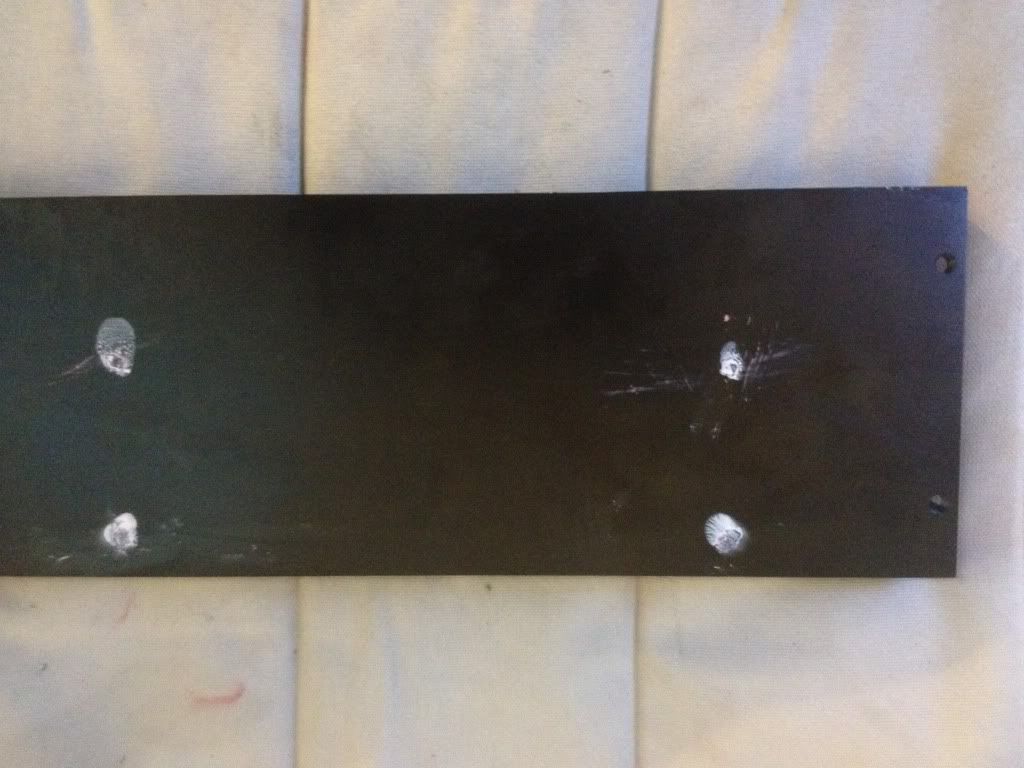

    Templete to drill for mounting.

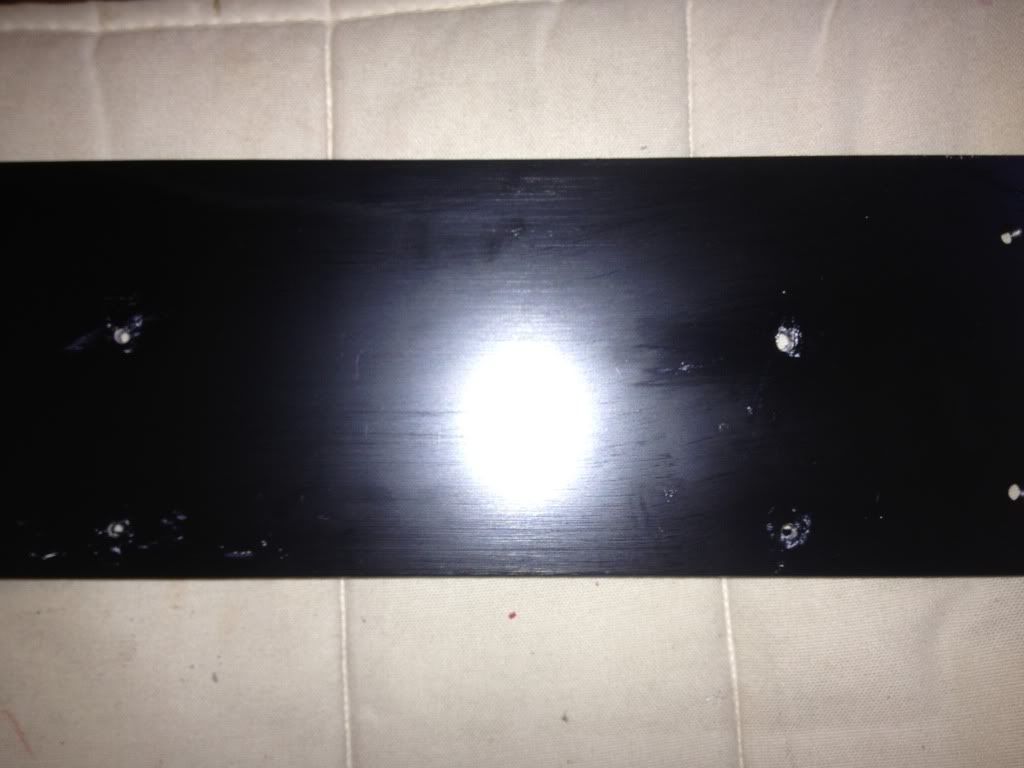

    Drilled holes.

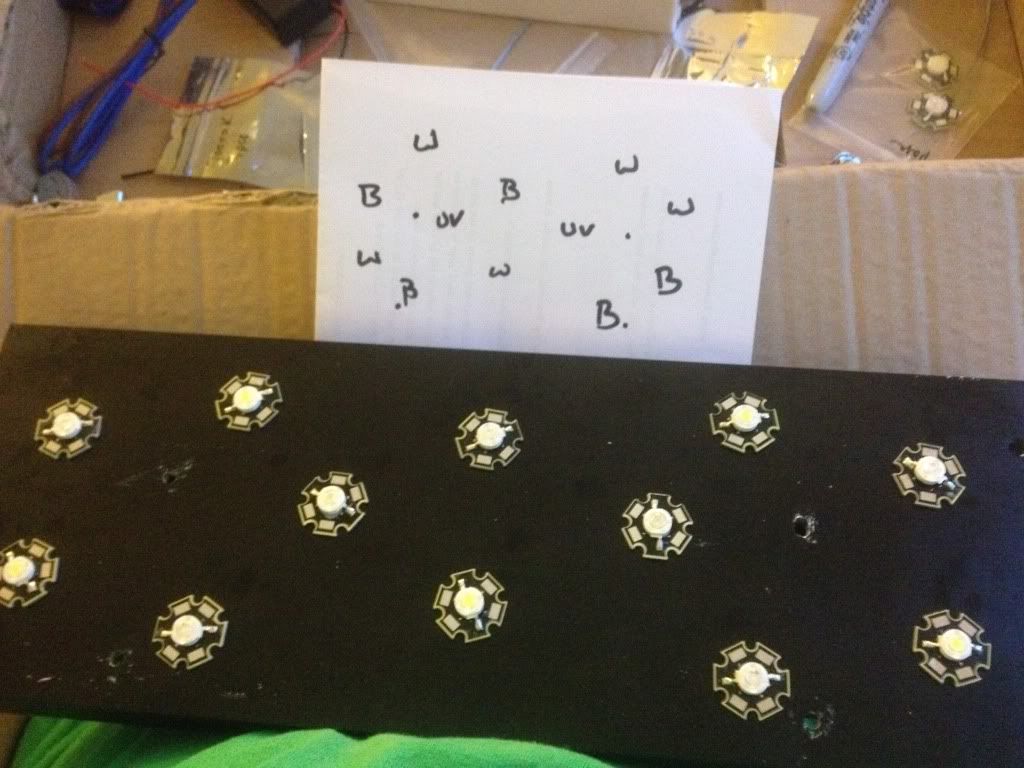

    Trying to decide my layout.

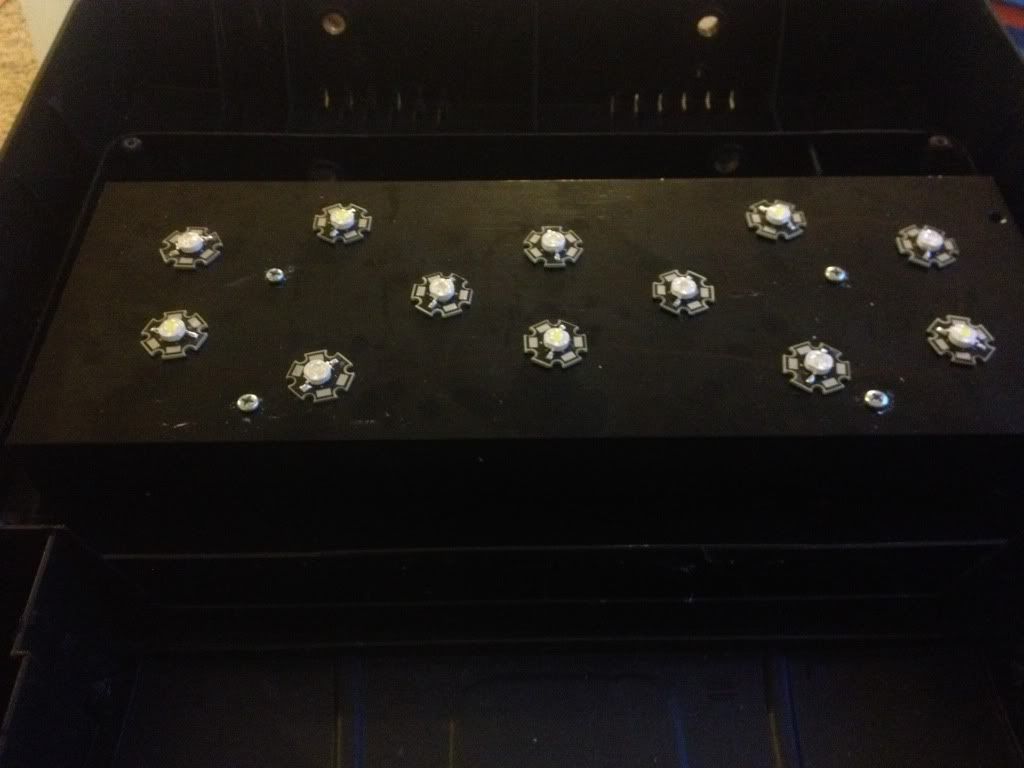

    Glued and mounted to hood.

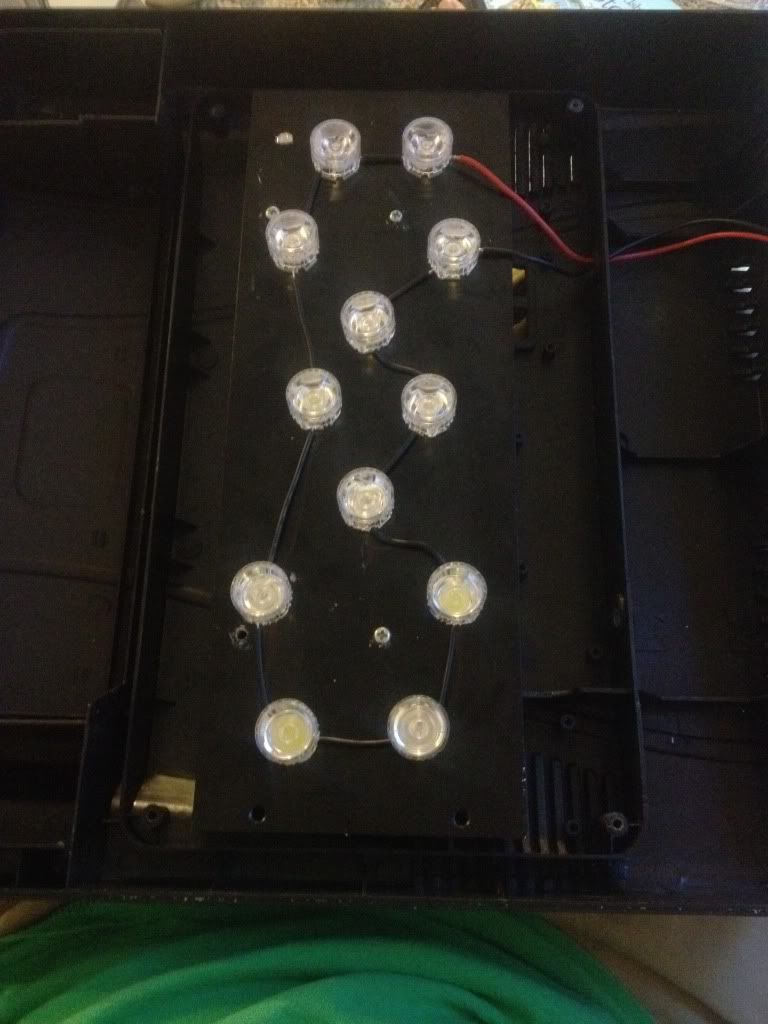

    Wired.

    You guys will get to see it on Monday at the meeting. Hope it lights up the frag tank nice.


    CAUTION: I AM NOT RESONSIBLE FOR YOU GOING BLIND IF YOU LOOK AT THE LIGHTS FOR TO LONG. THESE THINGS ARE REALLY BRIGHT.
    www.aquastyleonline.comwww.aquastyleonline.comwww.aquastyleonline.com


    Last edited by reefer87 on Sat 03 Mar 2012, 2:15 pm; edited 1 time in total
    • Back to top
    Sandman

    Sandman
    Charter Member

    Posts: 490
    Join date: 2011-11-28
    Location: Quartz Hill, Ca
    • Post n°2

    Re: Aqua Style Led Kit for Biocube 14

    Post by Sandman on Sat 03 Mar 2012, 2:01 pm

    Nice, can you take a pic of them on your nano?
    • Back to top
    sisterlimonpot

    sisterlimonpot
    Admin

    Posts: 1410
    Join date: 2011-07-25
    • Post n°3

    Re: Aqua Style Led Kit for Biocube 14

    Post by sisterlimonpot on Sat 03 Mar 2012, 2:24 pm

    Nice, does the driver allow you to dim the LED's?


    _________________
    2013 MASVC President
    • Back to top
    reefer87

    reefer87
    Charter Member

    Posts: 674
    Join date: 2011-09-10
    Age: 26
    Location: Point Mugu
    • Post n°4

    Re: Aqua Style Led Kit for Biocube 14

    Post by reefer87 on Sat 03 Mar 2012, 2:52 pm

    No it's not dimmable. The dimmable kit was a little bit more. I can always add on later.
    • Back to top
    dwolson2

    dwolson2
    Admin

    Posts: 2283
    Join date: 2011-08-07
    Location: Where ever I am told to go
    • Post n°5

    Re: Aqua Style Led Kit for Biocube 14

    Post by dwolson2 on Sat 03 Mar 2012, 3:25 pm

    take a pic with it on your 60


    _________________
    2012 MASVC Treasurer, 2013 MASVC webmaster/secretary

    Wasting money on my tank one paycheck at a time!!
    50 Gal Cadlights(No thread, as its still a bit away from finishing it)
    • Back to top
    Sandman

    Sandman
    Charter Member

    Posts: 490
    Join date: 2011-11-28
    Location: Quartz Hill, Ca
    • Post n°6

    Re: Aqua Style Led Kit for Biocube 14

    Post by Sandman on Sat 03 Mar 2012, 3:53 pm

    How long did it take you start to finish?
    • Back to top
    reefer87

    reefer87
    Charter Member

    Posts: 674
    Join date: 2011-09-10
    Age: 26
    Location: Point Mugu
    • Post n°7

    Re: Aqua Style Led Kit for Biocube 14

    Post by reefer87 on Sat 03 Mar 2012, 4:01 pm

    It took me about 2 hours. Plus I took it all apart to install fans so 3 hours in all. I will post lighted pics in a little while.
    • Back to top
    dwolson2

    dwolson2
    Admin

    Posts: 2283
    Join date: 2011-08-07
    Location: Where ever I am told to go
    • Post n°8

    Re: Aqua Style Led Kit for Biocube 14

    Post by dwolson2 on Sat 03 Mar 2012, 6:41 pm

    its been a little while....


    _________________
    2012 MASVC Treasurer, 2013 MASVC webmaster/secretary

    Wasting money on my tank one paycheck at a time!!
    50 Gal Cadlights(No thread, as its still a bit away from finishing it)
    • Back to top
    reefer87

    reefer87
    Charter Member

    Posts: 674
    Join date: 2011-09-10
    Age: 26
    Location: Point Mugu
    • Post n°9

    Re: Aqua Style Led Kit for Biocube 14

    Post by reefer87 on Sat 03 Mar 2012, 6:42 pm

    Im working on it. trying to upload to photobucket.
    • Back to top
    reefer87

    reefer87
    Charter Member

    Posts: 674
    Join date: 2011-09-10
    Age: 26
    Location: Point Mugu
    • Post n°10

    Re: Aqua Style Led Kit for Biocube 14

    Post by reefer87 on Sat 03 Mar 2012, 6:48 pm


    On the 60.


    On the nano.The two in the middle are uv. They look really dim.


    Another Nano.
    • Back to top
    Sandman

    Sandman
    Charter Member

    Posts: 490
    Join date: 2011-11-28
    Location: Quartz Hill, Ca
    • Post n°11

    Re: Aqua Style Led Kit for Biocube 14

    Post by Sandman on Sat 03 Mar 2012, 7:17 pm

    Very blue, I like that. How far above the water did you have it over the 60 for the picture?
    • Back to top
    reefer87

    reefer87
    Charter Member

    Posts: 674
    Join date: 2011-09-10
    Age: 26
    Location: Point Mugu
    • Post n°12

    Re: Aqua Style Led Kit for Biocube 14

    Post by reefer87 on Sat 03 Mar 2012, 7:18 pm

    Sandman wrote:Very blue, I like that. How far above the water did you have it over the 60 for the picture?


    maybe 2 inches
    • Back to top
    dwolson2

    dwolson2
    Admin

    Posts: 2283
    Join date: 2011-08-07
    Location: Where ever I am told to go
    • Post n°13

    Re: Aqua Style Led Kit for Biocube 14

    Post by dwolson2 on Sat 03 Mar 2012, 7:20 pm

    looks good man!


    _________________
    2012 MASVC Treasurer, 2013 MASVC webmaster/secretary

    Wasting money on my tank one paycheck at a time!!
    50 Gal Cadlights(No thread, as its still a bit away from finishing it)
    • Back to top
    reefer87

    reefer87
    Charter Member

    Posts: 674
    Join date: 2011-09-10
    Age: 26
    Location: Point Mugu
    • Post n°14

    Re: Aqua Style Led Kit for Biocube 14

    Post by reefer87 on Sat 03 Mar 2012, 7:21 pm

    Thanks guys. You will get to see first hand on Monday.
    • Back to top
    reefer87

    reefer87
    Charter Member

    Posts: 674
    Join date: 2011-09-10
    Age: 26
    Location: Point Mugu
    • Post n°15

    Re: Aqua Style Led Kit for Biocube 14

    Post by reefer87 on Sat 03 Mar 2012, 9:24 pm

    I really want to start this tank back up now. Razz
